Description
OVERVIEW

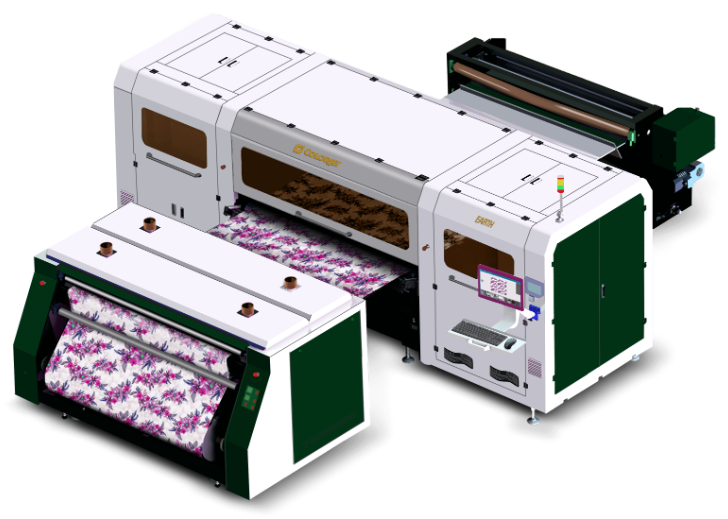

The EARTH SERIES is a great combination of sustainability, quality, performance, speed, and natural resource conservation.
It is the best printing solution for businesses with an intent to invest in sustainable and performance-oriented Digital Textile Printing solutions. ColorJet Earth Solution offers a clean future for the environment. ColorJet specialized Pigment Ink with binder offers greener solution by way of eliminating process in digital textile printing. Polymerization at 160-degree after printing provides excellent color fastness and print quality with
exceptional production capacity of 2500 linear meter/day.
Why we should prefer the colorjet EARTH SERIES for the Textile Printing business?
COLORJET EARTH PIGMENT INKS deliver excellent fastness properties and high printability sharpness. Designed to leverage ColorJet EARTH digital printers’ market-proven industrial performance capabilities, these eco-friendly water-based inks provide extraordinary print durability and yield longer print head life with low maintenance costs. These high-performance digital pigment inks work on an innovative binder technology for fast, sustainable, and cost-competitive industrial textile printing on the most extensive range of fabrics.
In addition, ColorJet-tailored preparations will grant superior print definition, colour intensity, and incomparablewet and dry fastness.
FEATURES
High fastness Properties
High Printability Sharpness
Immediate Visibility Of Printing Results
Binder Technology
Deep color intensity
ColorJet special ICC Profiles
SPECIFICATION
THE EARTH SERIES |
||||||
|
CONFIGURATION
|
EARTH32
|
EARTH16
|
EARTH8
|
|||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet
|
|||||
| No. of Print Heads |
32
|
16
|
8
|
|||
| Print Heads | Type |
Industrial Grade Jetting Assemblies
|
||||
| Resolution |
Upto 1440 DPI
|
|||||
| Height Adjustment |
upto 30mm
|
upto 5mm
|
||||
| Cleaning Method |
Pressure Purge and Wiping
|
|||||
| Wetting Control |
Piezoelectric Actuations
|
|||||
| Inks | Types |
Earth Pigment
|
||||
| No of colors |
8
|
8
|
8
|
|||
| Supply |
10 Ltr, Bulk ink Supply System with inline degassing
|
3.9 Ltr, Bulk ink supply system with inline degassing
|
||||
| Fabric | Types |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
|
||||
| Max.Thickness |
Upto 20mm
|
Upto 5mm
|
||||
| Max. Printing Width |
Upto 1850 mm
|
Upto 1800 mm
|
||||
| Roll Diameter |
400 mm
|
450 mm
|
||||
| Fabric Drying System |
Infrared Heaters
|
|||||
| Operating Interface |
Touch Screen
|
|||||
| Printing Interface |
USB 3.1
|
USB 3.1
|
USB 2.0
|
|||
| RIP Software Supported |
NeoStampa (Colorjet Editions)
|
|||||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK)
|
|||||
| Power Supply |
220 V, 104 A Single / Three phase load distribution, 50Hz
|
220 V, 35 A Single / Three phase load distribution, 50Hz
|
||||
| Operating Conditions |
Temperature: 20 to 28°C Humidity: 55 to 75% RH(non-condensing)
|
|||||
| Printer Dimension / Net Weight |
4898 x 2250 x 1850 mm (LxWxH) / 3250 Kg Approx.
|
3950 x 1500 x 1600 mm (LxWxH) / 1200Kg Approx.
|
||||
| Dryer Dimension / Net Weight |
2590 x 1770 x 1318 mm (LxWxH) / 700 Kg. Approx. /48KW
|
Inbuilt
|
||||
| Feeder Dimension / Net Weight |
2482 x 820 x 1160 mm (LxWxH) / 720 Kg Approx.
|
Inbuilt
|
||||
| Speed In Sq. Meter/Hrs) |
Print DPI
|
Passes
|
EARTH32
|
EARTH16
|
EARTH8
|
|
| Mode 1 |
|
2
|
238
|
124
|
74
|
|
| Mode 2 |
|
3
|
136
|
85
|
50
|
|
| Mode 3 |
720×1440
|
4
|
103
|
58
|
35
|
|
