Description
FEATURES

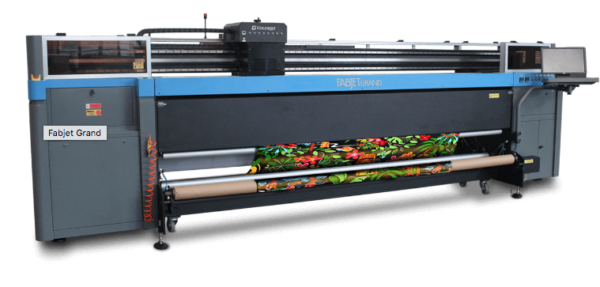

FABJET GRAND FEATURES TO EXPAND YOUR BUSINESS
SPECIALLY DEVELOPED AIVC
- Proprietory AIVC technology for consistent print performance by maintaining constant Jetting conditions even in varying environmental conditions
FEED SYSTEM
- Automated feed and take up system synchronised with tension bars for unattended long printruns on various types of fabric.
MEDIA TENSION CONTROL SYSTEM
- Pneumatics control-based tension-bar on media feed and take up, to ensure consistent tension on fabric. Automatically adjusts, based on type of fabric being used.
WIPERS
- Automatic wiping system which wipes excess ink and dust from the print head surface.
INDUSTRIAL GRADE JETTING ASSEMBLY
- Superior print-head durability ensures longer lifespan.
- Consistent print quality across the entire machine lifespan.
- Consistent performance even with varying viscosity.
- Low maintainance, easy to handle, less operational wastage.
INFLATABLE RODS
- Saves media loading time and prevents media skewing
- Ensures uninterrupted supply of media even if the core is deformed.
RIP
- Equipped with advance color management engine and color processing tools.
- Faster processing of files saves time, increases productivity.
- User-friendly and easy to use color controls to manage colors.
- Advanced dither patterns for photo-realistic output.
- Fully customized printer setting for enhanced print results.
- Smoother gradations, vibrant colors for superior print quality.
- Inbuilt ICC profiles for various media and print modes.
INK
- Non-polluting aqueous based pigment inks
- Wider color gamut of inks for vibrant color prints
- High density colors for higher coverage per liter.
- Fast drying.
- Optimized for best performance and longevity of print heads.
VARIABLE DROP TECHNOLOGY
- Uses 3 dot types to produce smoother gradations, vivid colors and sharp images; maintains details in mid tone areas
HEAD HEIGHT ADJUSTMENT
- Helps accommodate upto 10 mm thickness; can be changed during printing itself, if needed
CAPPING STATION
- Prevents inks from drying inside the print head when printer is not in use for long time; also protects head from dust which might cause damage to print head
SPECIFICATION
FABJET GRAND |
|||||
|
CONFIGURATION
|
P-4824
|
P-8824
|
|||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet
|
||||
| No. of Print Heads |
8
|
8
|
|||
| Print Heads | Type |
Industrial Grade Jetting Assemblies
|
|||
| Resolution |
Upto 1400 DPI
|
||||
| Height Adjustment |
upto 10 mm
|
||||
| Cleaning Method |
Pressure Purge and Wiping
|
||||
| Wetting Control |
Piezoelectric Actuations
|
||||
| Inks | Types |
Reactive / Disperse / Pigment / Acid
|
|||
| No of colors |
4
|
8
|
|||
| Supply |
2.5 Ltr, Bulk ink Supply System with inline degassing
|
||||
| Fabric | Types |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
|
|||
| Max.Thickness |
Upto 5mm
|
||||
| Max.Width |
3200mm
|
||||
| Roll Width |
400mm
|
||||
| Fabric Drying System |
Infrared Heaters
|
||||
| Operating Interface |
Touch screen
|
||||
| Printing Interface |
High Speed USB
|
||||
| RIP Software Supported |
ErgoSoft (Colorjet Editions)
|
||||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK)
|
||||
| Power Supply |
220 V, 32 A Single/Three phase load distribution, 50Hz,
|
||||
| Operating Conditions |
Temperature 18 to 28 C, Humidity: 35-80% RH ( Non-Condensing)
|
||||
| Outer Dimension/Weight |
5300 mm x 1440 mm x 1650 mm (LxWxH) 1800 Kg Approx.
|
||||
| Speed (In Sq. Meter/Hrs) |
Print DPI
|
Passes
|
P4824
|
P8824
|
|
| Mode 1 |
|
2
|
167
|
98
|
|
| Mode 2 |
|
3
|
116
|
68
|
|
| Mode 3 |
540 x 1440
|
4
|
87
|
51
|
|
| Mode 4 |
540 x 1080
|
6
|
58
|
34
|
|
| Mode 5 |
540 x 1440
|
8
|
46
|
27
|
|
| Mode 6 |
720 x 720
|
4
|
84
|
49
|
|
| Mode 7 |
720 x 1080
|
6
|
46
|
26
|
|
| Mode 8 |
720 x 1440
|
8
|
42
|
24
|
|
