Description

ADVANTAGES
PRODUCT STRUCTURE
Main drivint roller
Main drivint roller
Route of two single printing
Work as 2 printers

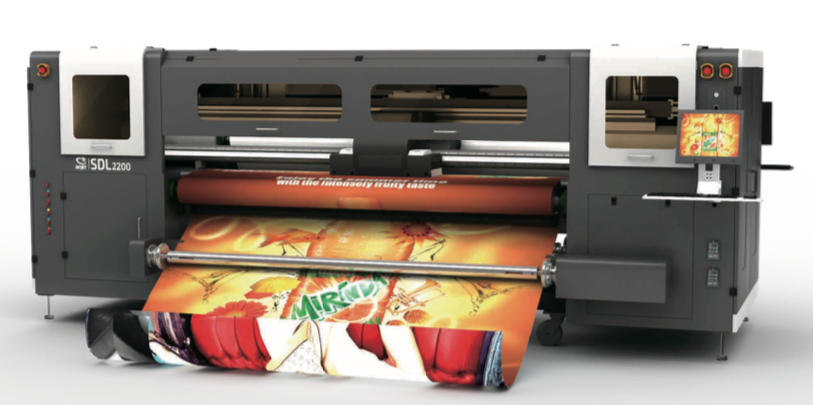

SDL2200 equips 2 sets of medium drive devices, printing carriages, control systems, constant tension systems and ink systems. It also works as 2 units 3.2 meters single side printers.
Main drivint roller
Main drivint roller
Double side printing route
Work as 1 Double sided printer
SDL2200 adopts patent media rolling system and synchronous control system. It can print same and different images on media, 100% alignment resolution. Easily print double sided jobs like light box, mesh or others.
Wide application: Widely used on double sided solution such as door-head light box, shop light box, business flag, creative light box, mesh solution etc. And 2.2meters size can complete almost 80% printing job because most of jobs are within 1.6-1.8meters size.
Save money Save money and save space, much more smaller than a 3.2meters or 5 meters printer, less & space: floor needed and less floor rent needed.
Cost advantage: Konica1024i or RICOH print heads are choices these can keep higher resolution and high printing speed. Widely used on 3P media, backlit, banner, pvc, stickers and PET.etc.
Double sided Application
Most of wall light boxes made by the art of “double ink volume”and the effect is dark and different status at daytime and night, but Double sided printing solves the problem.
Most of shop light boxes are using soft film, but its cost is high and there is joint trace if length is over 1.2meters. Double sided printing can perfect replace this kind of craft.
Day&Night effect, The light box is more positive and charming at night. Dynamic technology perfect solution.
Transparent, ventilating, double sides looking mesh is hot media for brand customer. It can be used to scroll, decoration clog, sunshade curtain etc. Double sided print is the only way to avoid non-fouling of inks.
Single color could not meet customers decoration needs.Double sided craft can perfect meet customers needs of special LOGO,full color and conten
TECHNICAL SPECIFICATION
Double sided printing, 2 sets of single side printing.
Constant tension media rolling system keeps media rolling perfect and ensure perfect alignment resolution.
Constant temperature water-cooling platform can keep platform resolution be 0.1mm and print 4P words better clearness.
New designed software can be composing after RIP and also can use different ICC curve for different file in same print process.Saving 30% working time.
Print Log writes print data automatic which is easier to know the print cost.
ECHNICAL PARAMETER
Model |
SDL2200 |
||
Print width |
2200mm |
||
Media thickness |
Manual 10mm adjustable |
||
P.H. type |
KM1024i-6pl/KM1024i-13pl |
||
Color |
C M YK W |
||
Print model |
Double sided printing |
Single sided printing |
|
Speed |
4 pass+50% |
23m2 |
58m2 |
6 pass+50% |
16m2 |
41m2 |
|
8 pass+50% |
12m2 |
30m2 |
|
RIP software |
PRINT FACTORY |
||
Color control |
International standard ICC |
||
UV curing system |
LED type |
||
Ink type |
Imported UV ink |
||
Data Interface |
Optial fiber/USB3.0 |
||
Power supply |
3 phase 380V/5.5KW;50/60HZ |
||
Environmental requirement |
Temperature 20°C-28°C,Indoor humidity40%-60% |
||
Dimension |
4430×1750×1670(mm) |
||
Net weight |
2000KG |
