Description

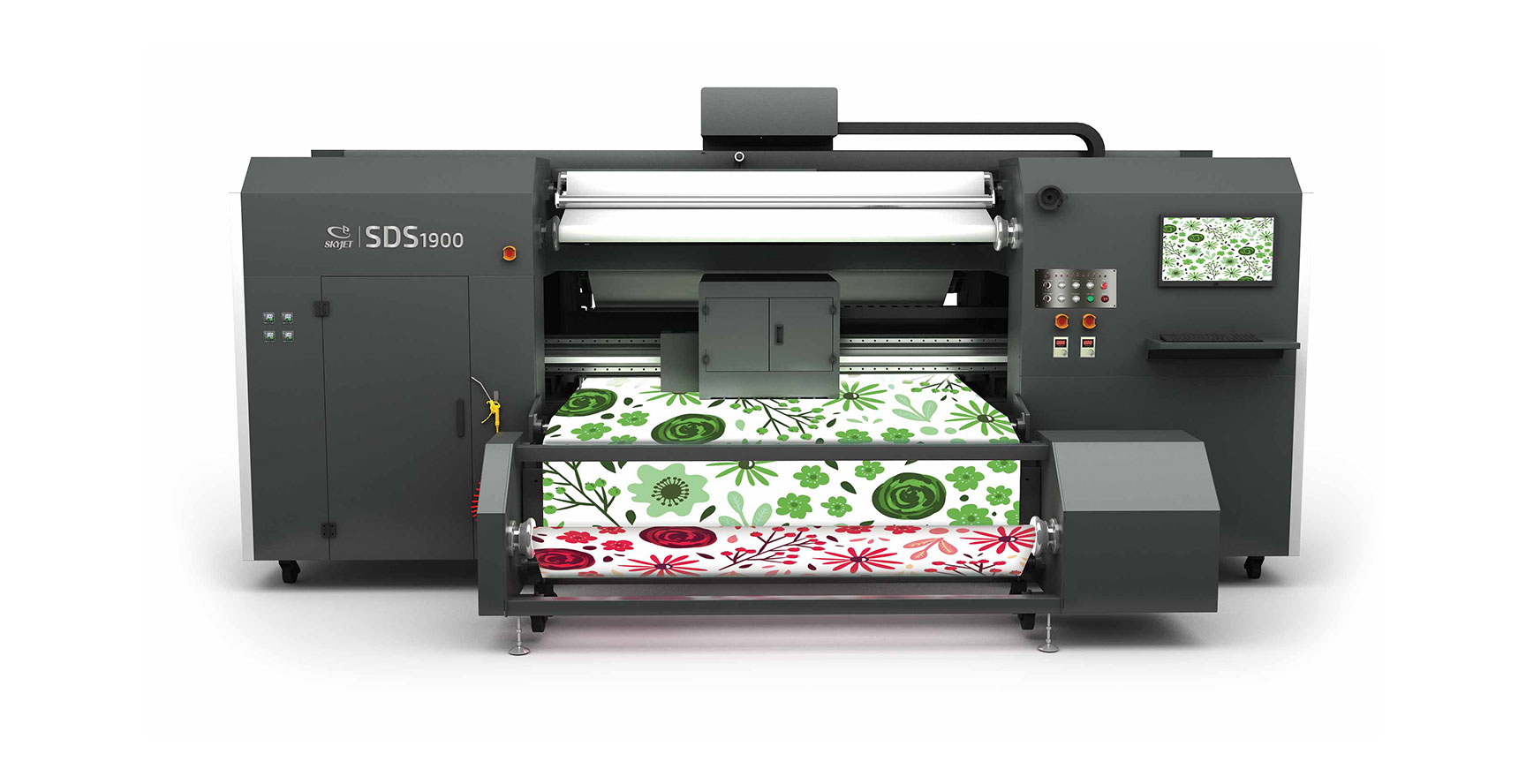

SDS1900
SDS1900 adopts new generation scanning alignment system and mechanical design which keeps a perfect double sided textile print job. SDS1900 is the perfect printer designed for designer and textile manufacturers.
TECHNICAL DATA
- Frame: 2 printing carriages frame to print double sides at one time
- Synchronous print: Synchronous data transfer control can assure 2 printing carriages print
- Automatic alignment: Constantly collecting textile images, automatic modify alignment errors.
- Tension system: Servo motor textile feed&take up system which controls textile to keep a constant tension.
- Tension data: Different textile can set and save different print date.
- Belt cleaning system: Automatic print linkage with belt cleaning device up&down
- Print head maintain: Whole sealing Moisturization, ink purging, head shave device to keep print head stable
- Height adjustment: Automatic printing carriage height adjustment
- Control system: Industry level PLC control system to keep system running steady.
- Ink supply: Negative pressure ink supply system ,wriggle pump can reduce the bubble,abnormal ink supply protection system
- Alignment data: Non recognition information image, manually input alignment data.
- Frill check: sensor will check the fabric on belt, print will stop for alarm when frill happens
- Print note: automatic note all print job
- Ink cost statistics: Automatic calculate ink use level and the print cost
FUNCTION
- Textile media: permeable suitable thickness media and heavy
impermeable media - Print workmanship: same pattern same color, same pattern
different color, different pattern and different color
PARAMETER
|
Model |
SDS1900 |
|
Frame |
Upper Flatbed+down belt (include camera) |
|
Printing Width |
1800mm |
|
P.H.Type |
Kyocera KJ4B QA06 600dpi |
|
P.H.No. |
16 print heads |
|
Color |
K C M Y BLUE |
|
Speed |
2PASS(605×1200) 90㎡/ h |
|
3PASS(605×1800) 60㎡/ h |
|
|
4PASS(605×2400) 45㎡/ h |
|
|
6PASS(605×3600) 30㎡/ h |
|
|
8PASS(605×4800) 23㎡/ h |
|
|
Media Length |
100m |
|
Media Thickness |
10mm |
|
Textile Type |
Silk,cashmere,wool,cotton,chemical fiber,blended fabric |
|
Ink Type |
Ractive dye ink, Diperse dye ink, Acid dye ink, |
|
RIP Software |
Caldera Textile or Neostampa optional |
|
Work Environment |
Humidity20-28℃,temperature50-70% |
|
Power |
380V，50/60HZ, 24.5KW |
|
Dimension |
4940mm×3365mm×2180mm |
|
Weight |
3400KGS |
