Description

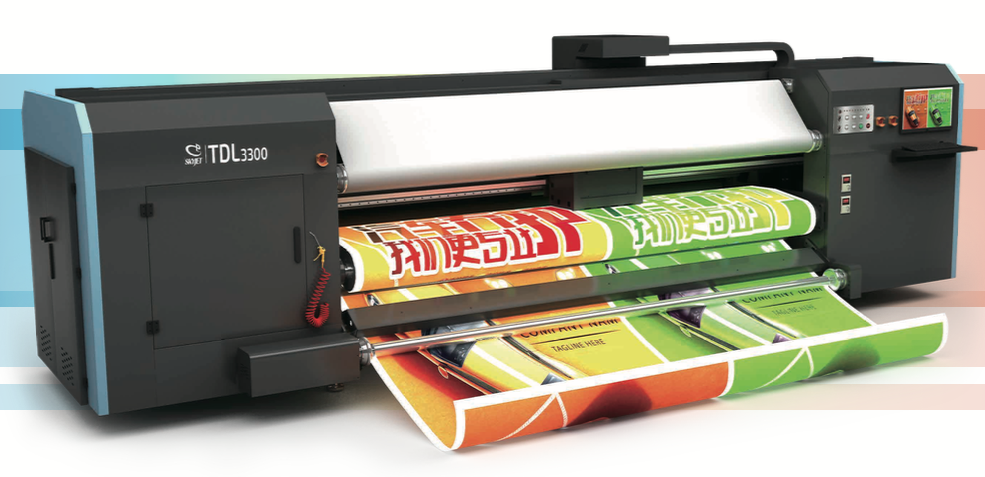

TDL3300
Single&Double Sided Textile Direct Printing Machine
Double carriages direct print
ADVANTAGES
Double sided direct print:“Same pattern same color, different pattern different color,same pattern different color”could be direct printed by feeding Flag fabric at one time
Industry capacity: Under 2PASS module, Direct printing capacity can be 236sqm/hour, easily meet 4000sqm dairy work ability. Saving labor cost, ground cost and getting better color accuracy.
High value:TDL3300 can works as 3 textile direct printing machines and it covers whatever traditional single side printing and double sided printing abilities.
Muti dot alignment:Freely set double sided alignment dot, easily adjusts front&back alignment, Suitable for muti fabric double sided direct print.
TECHNICAL SPECIFICATION
[Extra precision direct print]
Industry kyocera gray scale head, 1200DPI resolution, more colorful and smooth.
[Feeding structure]
Servo motor accuracy controls big rubber roll driving to keep fabric step rolling accuracy and without wrinkle.
[Tension contro]
Tension feed&take up system can keep instant tension on fabric and is suitable for many different kinds of textile.
[P.H.maintain]
Automatic moisturize, cleaning, and wipe device to prevent print heads nozzle clog and keep a long time direct print ability.
[Degassing module]
Remove bubble of ink and keep high speed continuous print without clog.
[Infrared drying]
High efficiency infrared air heating system to keep high speed need and taking up needs.
[Textile]
Terylene, blended fabric etc. Chemical fiber fabric.
[Color RIP]
CALDERA
[Imported parts]
Metal grating ruler, 750KW Panasonic servo motor, IGUS train&cable, Japanese up-down motor, Mitsubishi industry control PLC etc. can keep machine working more stable.
|
Model |
TDL3300 |
|||
|
P.H. |
KJ4B- 4 (2-channel) heads/ 2 Front+2 Back |
KJ4B-8 (single-channel) heads/ 4 Front+4 Back |
||
|
Print M. |
Double carriages |
Double sided |
Double carriages |
Double sided |
|
Print resolution (without mask) |
2pass(605×600) 236m2/h |
2pass(605×600) 100m2/h |
2pass(605×1200) 236m2/h |
2pass(605×1200) 100m2/h |
|
3pass(605×900) 172m2/h |
3pass(605×900) 73m2/h |
3pass(605×1800) 172m2/h |
3pass(605×1800) 73m2/h |
|
|
4pass(605×1200) 136m2/h |
4pass(605×1200) 58m2/h |
4pass(605×2400) 136m2/h |
4pass(605×2400) 58m2/h |
|
|
Ink type |
Dye sublimation and disperse |
|||
|
Color |
C、M、Y、K |
|||
|
Ink tank |
5L |
|||
|
RIP |
CALDERA Rip |
|||
|
P.H.maintain |
Automatic cleaning, wipe, moisturize, sealing device |
|||
|
Fabric thickness |
10mm |
|||
|
Print width |
3200mm |
|||
|
Print length |
50m |
|||
|
Work Environment |
Humidity20-28°C,temperature40-70% |
|||
|
Power |
380V,50/60Hz,Main 15.5KW(Drying 8KW) |
|||
|
Dimension |
6122×2037×1920(mm) |
|||
|
Weight |
3800KG |
|||
