Description

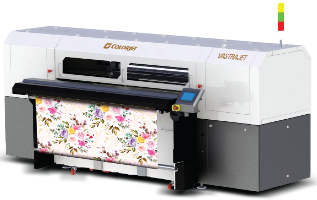

VASTRA JET
DIRECT TO FABRIC DIGITAL TEXTILE PRINTER
VASTRAJET is a high speed Direct to Fabric Digital Textile printer designed to print directly on natural and synthetic fabric. Built on 3E design philosophy – Economic, Efficient and Ecological, VASTRAJET comes with maximum capabilities and applications for maximum business.
This Direct to fabric printer is a leap ahead in its technology, with high precision and quality output making it the most selling Digital Textile Printer from the house of ColorJet.
FEATURES
VASTRAJET : FEATURES DESIGNED TO DRIVE YOUR PROFITABILITY
Built on industrial-grade jetting assembly, it is available in 4 & 8 colour variants. Compact, modular and heavy-duty design with rigid structure makes this cotton printing machine suitable for rigorous industrial operating conditions. With its adhesive belt cleaning system that is equipped with water jets and brush roller, this innovative cotton printing machine ensures the washing off of excess ink and lint reducing the maintenance cost. The major compatible inks are reactive, disperse, pigment and acid.
SPECIALLY DEVELOPED AIVC
Proprietory AIVC technology for consistent print performance by maintaining constant Jetting conditions even in varying environment conditions
INDUSTRIAL GRADE JETTING ASSEMBLY
- Increased durability of print head ensures longer life span
- Low maintenance results in less wastage and easy to handle
- Consistent print quality across the entire life span
- Consistent performance even with varying viscosity
- Supports variable drop printing and produces 8 different drop sizes
SPECIFICATION
VASTRAJET works on the technology of Drop-on-demand, Piezoelectric Inkjet that prints up to the high quality of 720×1440 DPI with the option of 8 colours, 16 heads and 1024 nozzles. It offers the convenience of varied file formats including JPEG, TIFF, BMP, PDF (RGB/CMYK). VASTRAJET is an ideal solution for industrial and commercial textile printing ensuring high profitability and durability.
VASTRAJET |
||||||||
|
CONFIGURATION
|
C4812
|
C8812
|
C4824
|
C8824
|
C8164
|
|||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet
|
|||||||
| No. of Print Heads |
8
|
8
|
8
|
8
|
16
|
|||
| Print Head | Type |
Industrial Grade Jetting Assemblies
|
||||||
| Resolution |
Maximum Up to 1440 dpi
|
|||||||
| Height Adjustment |
Upto 5mm
|
|||||||
| CleaningMethod |
Pressure Purge and Wiping
|
|||||||
| Wetting Control |
Piezoelectric Actuations
|
|||||||
| Ink | Types |
Reactive/Disperse/Pigment/Acid
|
||||||
| No of colors |
4
|
8
|
4
|
8
|
8
|
|||
| Supply |
3.9 Ltr, bulk ink supply system with inline degassing
|
|||||||
| Fabric | Type |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
|
||||||
| Max.Thickness |
Upto 5mm
|
|||||||
| Max.Width |
1800 mm
|
|||||||
| Roll Diameter |
Upto 450mm
|
|||||||
| Fabric Drying System |
Infrared heaters
|
|||||||
| Operating Interface |
Touch screen
|
|||||||
| Printing Interface |
High speed USB 2.0
|
|||||||
| RIP Software Supported |
RIP Master or ErgoSoft ( Colorjet Edition)
|
|||||||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK)
|
|||||||
| Power Supply |
220 V, 35 A Single/Three phase load distribution, 50Hz,
|
|||||||
| OperatingCondition |
Temperature 20-28C, Humidity 60-70% RH ( Non-Condensing)
|
|||||||
| Outer Dimension/Weight |
3950 mm x 1500 mm x 1600 mm (LxWxH) 1200kg Approx.
|
|||||||
|
Speed (In Sq. Meter/Hrs)
|
Print DPI
|
Passes
|
C4812
|
C8812
|
C4824
|
C8824
|
C8164
|
|
|
Mode 1
|
|
2
|
116
|
68
|
NA
|
NA
|
NA
|
|
|
Mode 2
|
|
3
|
90
|
53
|
NA
|
NA
|
NA
|
|
|
Mode 3
|
360 x 720
|
4
|
63
|
37
|
NA
|
NA
|
NA
|
|
|
Mode 4
|
540 x 720
|
2
|
NA
|
NA
|
161
|
87
|
145
|
|
|
Mode 5
|
540 x 1080
|
3
|
NA
|
NA
|
98
|
59
|
100
|
|
|
Mode 6
|
540 x 1440
|
4
|
NA
|
NA
|
75
|
43
|
76
|
|
|
Mode 7
|
720 x 720
|
4
|
NA
|
NA
|
65
|
35
|
58
|
|
|
Mode 8
|
720 x 1080
|
6
|
NA
|
NA
|
38
|
23
|
39
|
|
|
Mode 9
|
720 x 1440
|
8
|
NA
|
NA
|
31
|
18
|
32
|
|
